The array of redundancy systems available from Comtech Xicom Technology has grown with new customer requirements and the introduction of new redundancy control approaches. Xicom redundancy systems can be configured for both rack-mount and antenna-mount operation.
For amplifier redundancy switching, the redundancy function can be located in the amplifiers or a separate controller. Amplifiers can accommodate simple systems while separate controllers are required for more complex systems. Irrespective of where the redundancy or switching decision is made, the decision is dependent on the status of the amplifiers.
All Xicom systems rely on summary fault signals via hardware for amplifier status, i.e. summary fault relay contacts, as it provides the most robust and quickest way to do the automatic switching. Additional amplifier monitor and control is communicated between amplifiers, and controllers if required, via serial or Ethernet communications.
Comtech offers a variety of single thread systems including:
Comtech offers a variety of single thread systems including:
Comtech offers a variety of two amplifier power combining systems including:
Comtech offers a variety of 1:2 redundancy systems including:
Comtech offers a variety of advanced systems including:
Comtech has developed a line of indoor and outdoor soft-fail continuous power systems. These are available for TWTAs and SSPAs:
Comtech Xicom amplifiers are complemented by a full suite of control system solutions. Controllers are available in 1RU configurations for basic systems in tight places and in 3RU touchscreen user interface for complex amplifier and switching configurations. Custom solutions can be implemented in the controller software.
Touchscreen Controllers

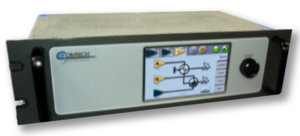

Comtech’s new generation of XTCT rack-mount controllers provide an easy to use, intuitive touch screen interface for monitoring and controlling outdoor amplifiers (ODUs). The new touch screen front panel displays the HPA’s operational status, including power output and temperature, graphical displays of parameter trend analysis, and event logs. Local and remote diagnostics can also be easily performed via an Ethernet interface.
This new display eliminates the need for a separate external controller to control multiple HPAs for common architectures (TWTAs or SSPAs). All operational data is saved within the amplifier’s non-volatile memory, providing a complete history of the HPA in the event that the unit needs service or repair.
The XTCT controller is housed in a 3RU, 19-inch rack unit and can be configured for controlling a single amplifier or multiple amplifiers in a 1:N redundancy system. The use of Ethernet technology means that additional HPAs and switches can be controlled to meet individual customer’s requirements.
Local and remote diagnostics can also be easily performed via an Ethernet interface. This new display eliminates the need for separate external controllers for common architectures because it can show and control waveguide switches and a combiner, providing both cost and space savings.
Features:
Options:

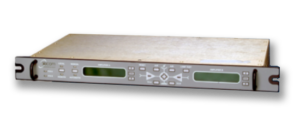

The XTD-114E can control up to 2 switches, so it is ideal for most 1:1 and 1+1 system configurations. It is targeted at low power BUCs which do not have space for an RS-485 interface and may lack built-in redundancy control. It is ideal for small size and low-cost installations with 1 RU height and only 10” depth. It includes redundant AC power supplies and supports a Web browser interface via an ethernet connection.
Features:
Model | Configuration | Amplifier Type | Front Panel Display | Size | Weight (LBS) | Data Sheet |
---|---|---|---|---|---|---|
XTCT-124D | UNLIMITED | Any Comtech Amp w/ethernet | Touch Screen | 3RU | 6.7 | Download Data Sheet |
XTC-114D | Single, 1:1 and 1+1 | Any Comtech Amp | 4 line | 1RU | 6.7 | Download Data Sheet |
XTC-114E | Single, 1:1, 1+1w/load switch | All Comtech digital amps/BUCs, CEFD amps/BUCs | 4 line | 1RU | 6.7 | Download Data Sheet |
XTD-115E | Single, 1:1, 1+1w/load switch | Any Comtech Amp | 4 line | 1RU | 6.7 | Download Data Sheet |
XTD-116E | Single, 1:1, 1+1w/polarity switch | Any Comtech Amp | 4 line | 1RU | 6.7 | Download Data Sheet |
